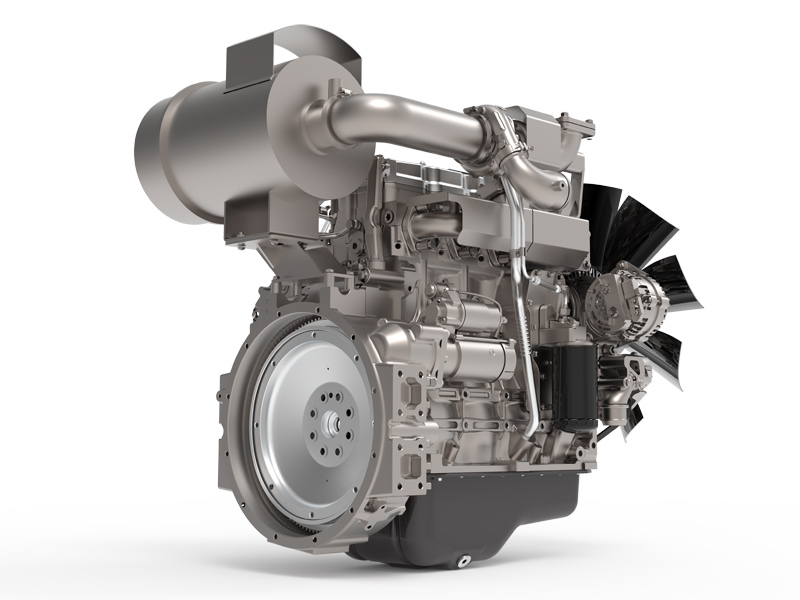

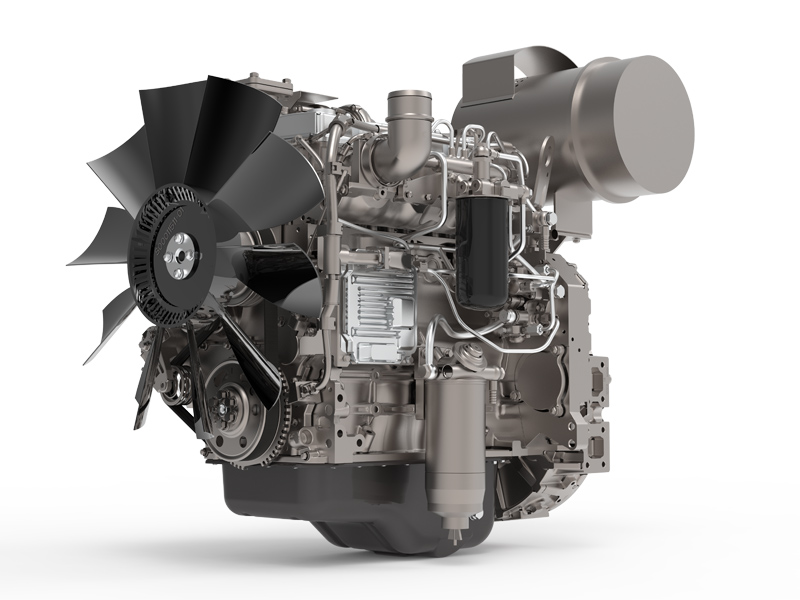

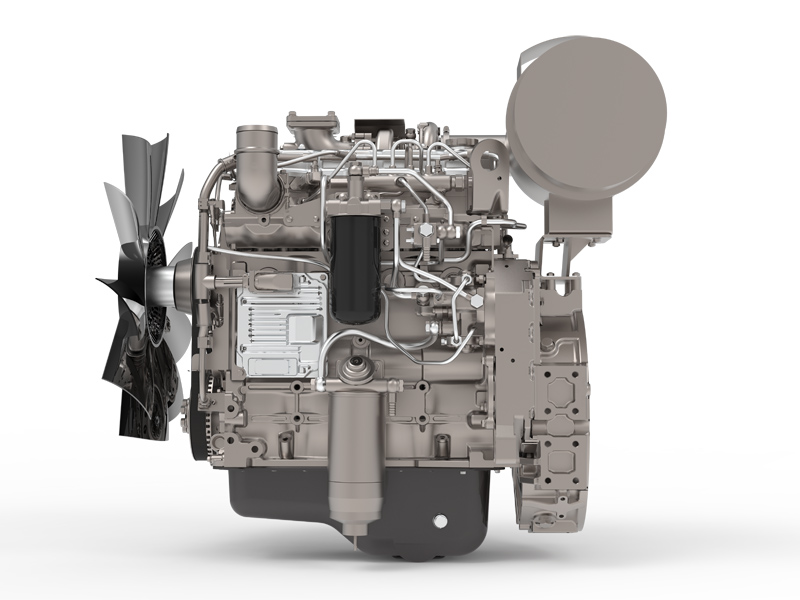

AS4300-H7175 G-Drive Engine

H Type (51~180kW)

AS4300-H7175 G-Drive Engine


51kW @ 1500 RPM、62kW @ 1800 RPM

  • Model: AS4300-H7175
  • Displacement: 4.3L
  • Engine Type: In line, four stroke, direct injection, water cooled
  • Aspiration: Turbocharged
  • Number of Cylinders: 4
  • Bore×Stroke: 105×124
  • Compression ratio: 17.3：1
  • Fuel consumption: 195 g/kW·h
  • Lubricating oil capacity: 13 L
  • Cooling system capacity: 6.8 L
  • Electrical System: 24V
  • Fly wheel: SAE3#SAE11.5〞
  • Dry Weight: 430KG
  • Dimensions (LxWxH): 1012×723×1102 mm
Contact us Download
product details
product description

description2

H Type (51~180kW)

Model Engine Prime Power Genset Prime Power Governer Emission
AS4300-H7175 51kW @ 1500 RPM/62kW @ 1800 RPM 40kWe @ 50Hz/50kWe @ 60Hz Electronical Stage II
AS4300-H7176 62kW @ 1500 RPM/67kW @ 1800 RPM 50kWe @ 50Hz/54kWe @ 60Hz Electronical Stage II
AS4300-H7177 78kW @ 1500 RPM/86kW @ 1800 RPM 64kWe @ 50Hz/68kWe @ 60Hz Electronical Stage II
AS4300-H7193 95kW @ 1500 RPM/105kW @ 1800 RPM 80kWe @ 50Hz/88kWe @ 60Hz Electronical Stage II
AS4300-H7195 105kW @ 1500 RPM/120kW @ 1800 RPM 92kWe @ 50Hz/100kWe @ 60Hz Electronical Stage II
AS4300-H7194 120kW @ 1500 RPM/120kW @ 1800 RPM 100kWe @ 50Hz/100kWe @ 60Hz Electronical Stage II
AS4300-H7003 125kW @ 1500 RPM 110kWe @ 50Hz ECU Stage III
AS6500-H7196 128kW @ 1500 RPM/136kW @ 1800 RPM 110kWe @ 50Hz/120kWe @ 60Hz Electronical Stage II
AS6500-H7197 140kW @ 1500 RPM/150kW @ 1800 RPM 120kWe @ 50Hz/128kWe @ 60Hz Electronical Stage II
AS6500-H7198 168kW @ 1500 RPM/180kW @ 1800 RPM 150kWe @ 50Hz/160kWe @ 60Hz Electronical Stage II

Advantages of AS Series G-Drive Engine

• AS Series Generator Drive Engine adopts microcomputer control system, good overall technical design, production and assembly are more in line with the standard technical requirements, and discard the technical design defects of the assembly unit.

• The engine uses a new combustor to increase the fuel injection pressure, improve the combustion process, and achieve environmental protection indicators: engine emissions meet non-road country III emission standards.

• The AS Series generator Drive Engine optimizes the design of the lubrication and cooling system, reduces the number of external pipelines and parts, and uses the whole brushless alternator to greatly improve the three leakage and greatly enhance the reliability.

• The engine has the advantages of large power, low fuel consumption, easy start, low emission, low vibration noise, easy maintenance and use.
