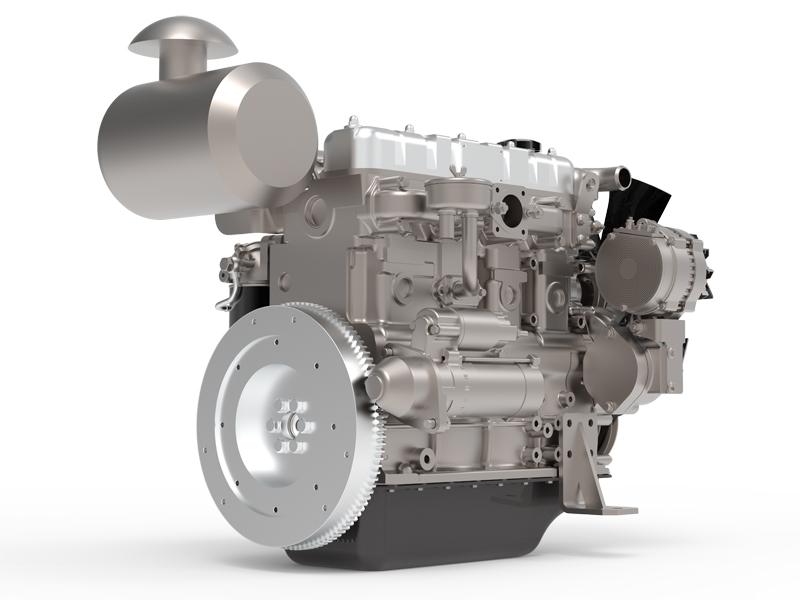

AS3200-Z0199 G-Drive Engine

Z Type (16~80kW)

AS3200-Z0199 G-Drive Engine


32kW @ 1500 RPM、38kW @ 1800 RPM

  • Model: AS3200-Z0199
  • Displacement: 3.2L
  • Engine Type: In line, four stroke, direct injection, water cooled
  • Aspiration: Naturally aspirated
  • Number of Cylinders: 4
  • Bore×Stroke: 98×105
  • Compression ratio: 18.5：1
  • Fuel consumption: 225 g/kW·h
  • Lubricating oil capacity: 6.5 L
  • Cooling system capacity: 5.75 L
  • Electrical System: 24V
  • Fly wheel: SAE4#SAE7.5〞
  • Dry Weight: 265KG
  • Dimensions (LxWxH): 750×565×700 mm
Contact us Download
product details
product description

description2

Z Type (16~80kW)

Model Engine Prime Power Genset Prime Power Governer Emission
AS2300-Z0196 16kW @ 1500 RPM/21kW @ 1800 RPM 12kWe @ 50Hz/16kWe @ 60Hz Electronical Stage II
AS2700-Z0197 22kW @ 1500 RPM/26kW @ 1800 RPM 16kWe @ 50Hz/20kWe @ 60Hz Electronical Stage II
AS3000-Z0198 27kW @ 1500 RPM/30kW @ 1800 RPM 20kWe @ 50Hz/24kWe @ 60Hz Electronical Stage II
AS3200-Z0199 32kW @ 1500 RPM/38kW @ 1800 RPM 25kWe @ 50Hz/30kWe @ 60Hz Electronical Stage II
AS3200-Z0200 39kW @ 1500 RPM/42kW @ 1800 RPM 32kWe @ 50Hz/34kWe @ 60Hz Electronical Stage II
AS3500-Z0201 49kW @ 1500 RPM/60kW @ 1800 RPM 40kWe @ 50Hz/48kWe @ 60Hz Electronical Stage II
AS4100-Z0202 60kW @ 1500 RPM/70kW @ 1800 RPM 50kWe @ 50Hz/60kWe @ 60Hz Electronical Stage II
AS4100-Z0203 64kW @ 1500 RPM/76kW @ 1800 RPM 55kWe @ 50Hz/64kWe @ 60Hz Electronical Stage II
AS4100-Z0221 74kW @ 1500 RPM/80kW @ 1800 RPM 60kWe @ 50Hz/65kWe @ 60Hz Electronical Stage II

Advantages of AS Series G-Drive Engine

• AS Series Generator Drive Engine adopts microcomputer control system, good overall technical design, production and assembly are more in line with the standard technical requirements, and discard the technical design defects of the assembly unit.

• The engine uses a new combustor to increase the fuel injection pressure, improve the combustion process, and achieve environmental protection indicators: engine emissions meet non-road country III emission standards.

• The AS Series generator Drive Engine optimizes the design of the lubrication and cooling system, reduces the number of external pipelines and parts, and uses the whole brushless alternator to greatly improve the three leakage and greatly enhance the reliability.

• The engine has the advantages of large power, low fuel consumption, easy start, low emission, low vibration noise, easy maintenance and use.
